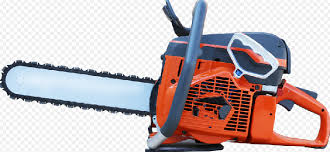

DIAMOND CHAIN SAW

GENERAL Diamond chain saw suitable for cutting reinforced concrete at least 300 mm thickness and with built in reinforcement up to 12 mm dia. Masonry bricks natural stone or other similar Material. 1. Engine – 2 stroke petrol driven air cooled power shall be not less than 5 H.P. 2.The starter shall be shielded from the dust & water. It shall have electronic ignition protected from water and single spring clutch proofed from water and concrete. 3. Fuel capacity : 01 litre (Approx) 4. The noise level should not exceed 105 dB at 01 mtr. 5. It shall be fitted with diamond chain, which run over the guide bar. The chain saw shall be capable of cutting RCC up to 360 mm thick and iron rod up to 12 mm dia. 6. The water supply required by the chain while cutting shall not exceed 10 lts/Min. 7. The chain saw shall also be provided with measures/Attachment for reducing the force required during cutting operation in order to reduce fatigue on operator. 8. It shall also be provided with foam covered full wrap handles, momentary contract on off switch, water pressure gauge, 360 degree swivel hose connector, sprocket side cover and guard flap for operator safety. 9. Weight : Not more than 20 kgs. 10. Cutting rate :- 10 to 25” per min or more. TECHNICAL EVALUATION/INSPECTION The technical para meter specified above shall be checked at the time of inspection. The supplier at his cost shall provide all tools/Eqpt/materials and facility required for testing inspection. ACCESSORIES:- 1. A spare diamond chain.
